boat control panel

boating line

We are pleased to introduce our line of control systems for boats, consisting of three specific control panels available in various configurations. These panels can be purchased either as a complete control system or as individual units

Each panel is designed for durability and reliability, thoroughly tested, and guaranteed to work with 12V/24V DC systems. Together, they allow you to monitor and control all the boat’s systems, both digitally and analogically. Additionally, our open-source onboard computer interfaces seamlessly with existing instrumentation, enabling effective communication.

Our complete system is composed of:

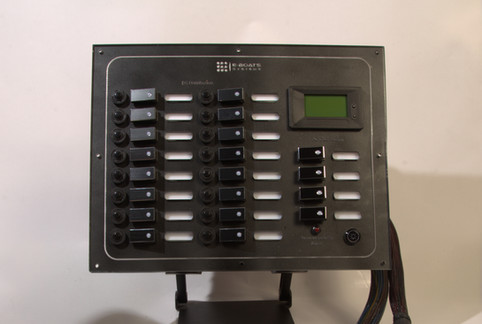

Boat PC monitor panel

This panel is equipped with:

  • 16 switches for 12/24VDC utilities

  • 4 switches for 110/220VAC utilities

  • 16 safety circuit breakers to protect the electrical system without needing to replace fuses (2x 5A, 4x 10A, 5x 15A, 5x 20A If you need a different amperage, simply communicate your configuration to us and allow a few days to adjust the panel according to your needs.)

  • LED indicator for reverse polarity

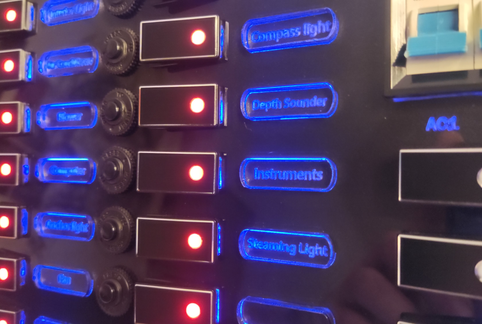

  • Backlighting (blue)



Additionally, two variants are available:

"Contactor" model, featuring:

  • 2 circuit breakers (rated at 16A) for 2 different AC power sources (shore and inverter/generator)

  • 1 AC contactor to automatically switch between the 2 AC power sources (normally, the system is powered by AC1, but when AC2 is activated, the contactor automatically switches the power from the first to the second source)

"Smart Voltmeter" model, featuring:

  • A smart voltmeter for monitoring the service batteries, with a 200A shunt resistor and multiple functions, including voltage monitoring, current input/output, and undervoltage alarm.



Panel dimensions: 34.5 cm x 27 cm x 5.5 cm

​

Designed to be elegant, intuitive, and functional, the panel is easy to install. However, installation on a recreational vehicle is recommended only by qualified technical personnel.

Built for durability: the panel features an acrylic front for increased resistance, and every contact is soldered to ensure long-term reliability and durability.

​​

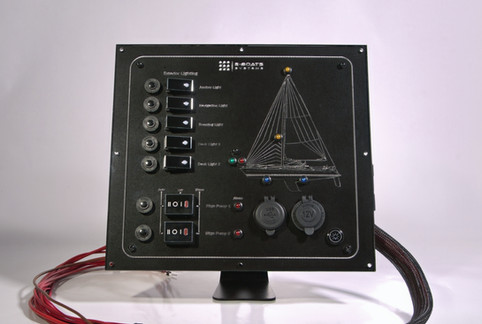

There are 2 models of this panel: the "basic" model and the "full" model, which, unlike the first, includes 2 voltmeters and an analog ammeter, enriching the functions and design. Additionally, both are currently available with 2 different boat designs: sloop and ketch.

​

The panel is equipped with:

  • 5 switches with integrated safety circuit breakers for exterior lighting (Max 15A per channel)

  • 2 on-off-on switches with integrated safety circuit breakers for bilge pumps (Max 15A per channel)

  • 2 USB ports for device charging (QC 3.0)

  • 1 x 12V power socket

  • LED indicators for lighting and bilge pumps

  • LED indicator for bilge pumps alarm

  • Backlit illumination (Blue)

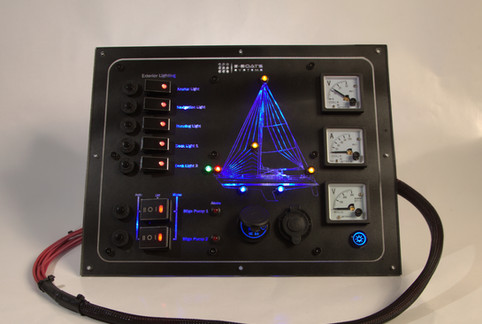

Additionally, the "full" model includes:

  • 2 voltmeters (DC max 30V and AC max 300V)

  • DC ammeter (max 200A)



Panel dimensions

"Full model" 34.5 cm x 27 cm x 5.5 cm

"Basic model" 29.5 cm x 27 cm x 5.5 cm

​

Designed to be elegant, intuitive, and functional, the panel is easy to install. However, installation on a recreational vehicle is recommended only by qualified technical personnel.

Built for durability: the panel features an acrylic front for increased resistance, and every contact is soldered to ensure long-term reliability and durability.​​

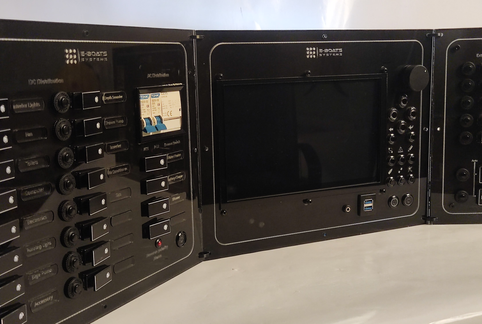

On-board pc/
monitor panel

This panel integrates a touchscreen monitor into your boat’s control console. Designed for use with our onboard computers, it can be easily adapted to other systems. It includes a rotary knob and push-button interface for PC control—especially optimized for OpenCPN. The touchscreen and button interface communicate via USB without requiring drivers, allowing for effortless plug-and-play functionality on Windows and Linux systems. Power can be supplied via either 5VDC or 12/24VDC.
Combined with our onboard PC/chartplotter, this panel becomes the ideal companion for managing your boat and navigating with precision.

The panel is equipped with:

  • 10.1" IPS LCD Capacitive Touchscreen Monitor (1024×600 resolution)

  • 1 Rotary knob for PC control

  • 12 Push buttons for PC control

  • Power button with PC connection

  • Backlight illumination (Blue)

  • Integrated speakers

  • 2 USB 3.0 ports

  • 1 Audio output jack

  • 1 HDMI port

  • 1 Micro-USB port for touchscreen and button interface

  • DC power input

​

Panel dimensions: 29.5 cm x 27 cm x 5 cm

​

Designed to integrate a computer into your boat's control panel, featuring a solid and elegant design that perfectly matches our product line, and is easy to install.

Built for durability: the panel features an acrylic front for increased resistance, and every contact is soldered to ensure long-term reliability and durability.









While these panels are built to withstand the challenging marine environment, it’s essential to install them below deck—they are not suitable for external use.

Their modular design ensures versatility during installation, adapting to different spaces.

Discover our:

If you need any modifications—such as different amperage, voltage, or backlighting—just let us know your requirements!
We can apply any type of customization to our panels, and if simple modifications aren’t enough, we can design fully tailored and custom control panels from scratch, perfectly adapted to meet our clients’ needs and ideas. check out ours

custom panels!
